Open store steel structure strengthened dwg

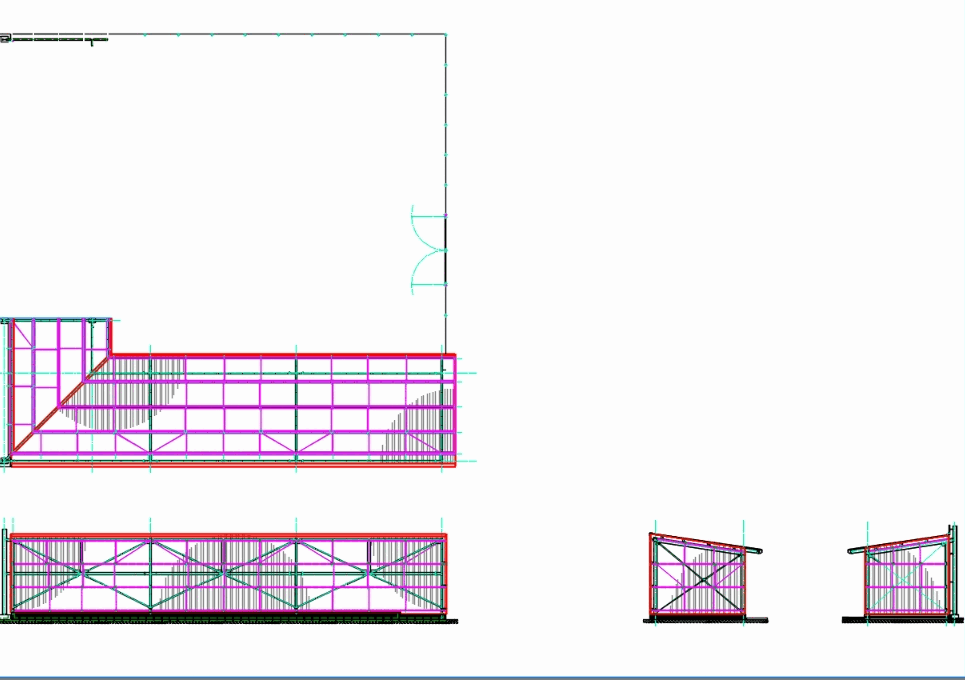

Store open for mine; all steel structure; it is located in a length of 25 mx 4.50 m area; 4 planes is located in the foreground; in which the ceiling type detailed with belts and profiles support is calculated as resistance for gas leak or explosion which the case is a super structure; in the plane n ° 02 are detailed sections and details of connections between profiles and steel pipes that anchor the structure further lift holding; and in the plane that do not be described as difficult the metrado all metallic structures leading; in the plane n ° 03; mechanical plane with details of the structure in height between metal structures such as trusses and joints of metal studs; and in the final plan no. 04 details the type of coverage and cruces carrying on a roof over more metrado included in the plane.
